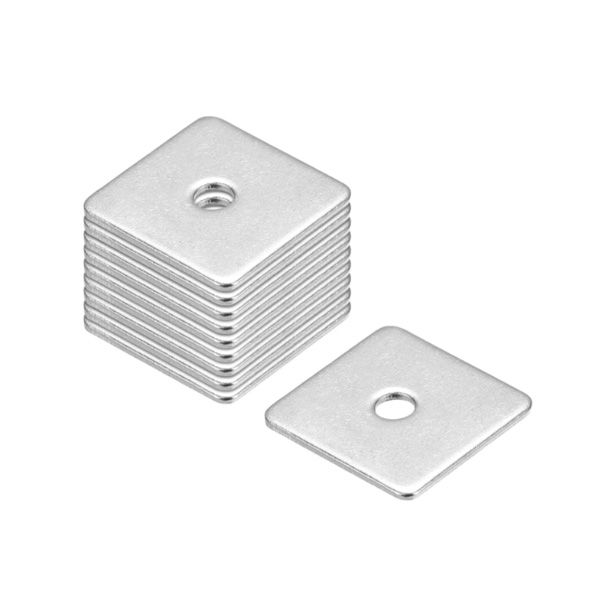

Zinc-Plated Square Plate Washers with Round Holes

Zinc-plated square plate washers with round holes provide a broad bearing surface for bolted connections in timber, brackets and equipment assemblies.


 Category:  Nut

 Email:  info@kangnaigu.net



Product Details
Standard No.: Custom Square Washer

Hot Dip Galvanized Square Flat Washer

Square plain washer with enlarged bearing area, evenly disperse pressure, widely used for bracket and steel structure fastening
Washer Square washer Square flat washer Galvanized washer Structural washer
1Product Attributes (General specification)
Product Name Hot Dip Galvanized Square Flat Washer
Standard Custom Non-standard Square Washer
Material Carbon Steel Q235
Surface Treatment Hot Dip Galvanized
Structure Square plate with single center hole
Origin Hebei · Handan · Yongnian — Integrated Manufacturer & Exporter
MOQ 100 Pcs (negotiable for trial orders)
2Performance Parameter (Reference data)
Feature Large bearing surface, reduce pressure concentration, protect substrate surface
Working Temperature -40 ℃ ~ +120 ℃
Corrosion Resistance Excellent anti-rust performance for outdoor, power and photovoltaic environments
Hardness HB 120~180
Tolerance Custom dimension tolerance according to drawing requirements
3Optional Types
Hot Dip Galvanized Carbon Steel Main option, strong corrosion resistance for outdoor engineering
Zinc Plated Carbon Steel Economical choice for indoor dry environment
304 Stainless Steel High anti-corrosion grade for coastal and chemical scenarios
4Size Table (Common models)
Common specifications of square flat washer, custom size available upon request.
Model Fit Bolt Inner Diameter(mm) Square Size(mm) Thickness(mm)
M8 M8 9 40×40 3
M10 M10 11 50×50 4
M12 M12 13 60×60 5
M16 M16 17 70×70 5
M20 M20 21 80×80 6
M24 M24 25 100×100 8
5Applications & Packaging (Trade info)
Applications Photovoltaic support, power fittings, steel structure, guardrail, foundation bolt assembly
Packaging Woven bag or carton, waterproof stretch film wrapped, pallet packing available
Documents PI, Packing List, Certificate of Origin, Material Test Report
Payment Terms 30% T/T in advance, balance before shipment
Lead Time 3–7 days for regular stock, 7–12 days for customized specifications
6Related Tags
square washer square flat washer galvanized square washer structural washer custom washer fastener washer

Request a Quote

Please tell us the size and quantity you need. We supply hot dip galvanized square flat washers for photovoltaic, power and structural fastening projects.
