Hex Head Self-Drilling Screws with Washers

hex head self drilling screws, self drilling screws with washers, hex washer head screws, drill point screws, metal fastening screws, sheet metal self drilling screws


 Category:  Screw

 Email:  info@kangnaigu.net



Product Details
Standard No.: DIN7504

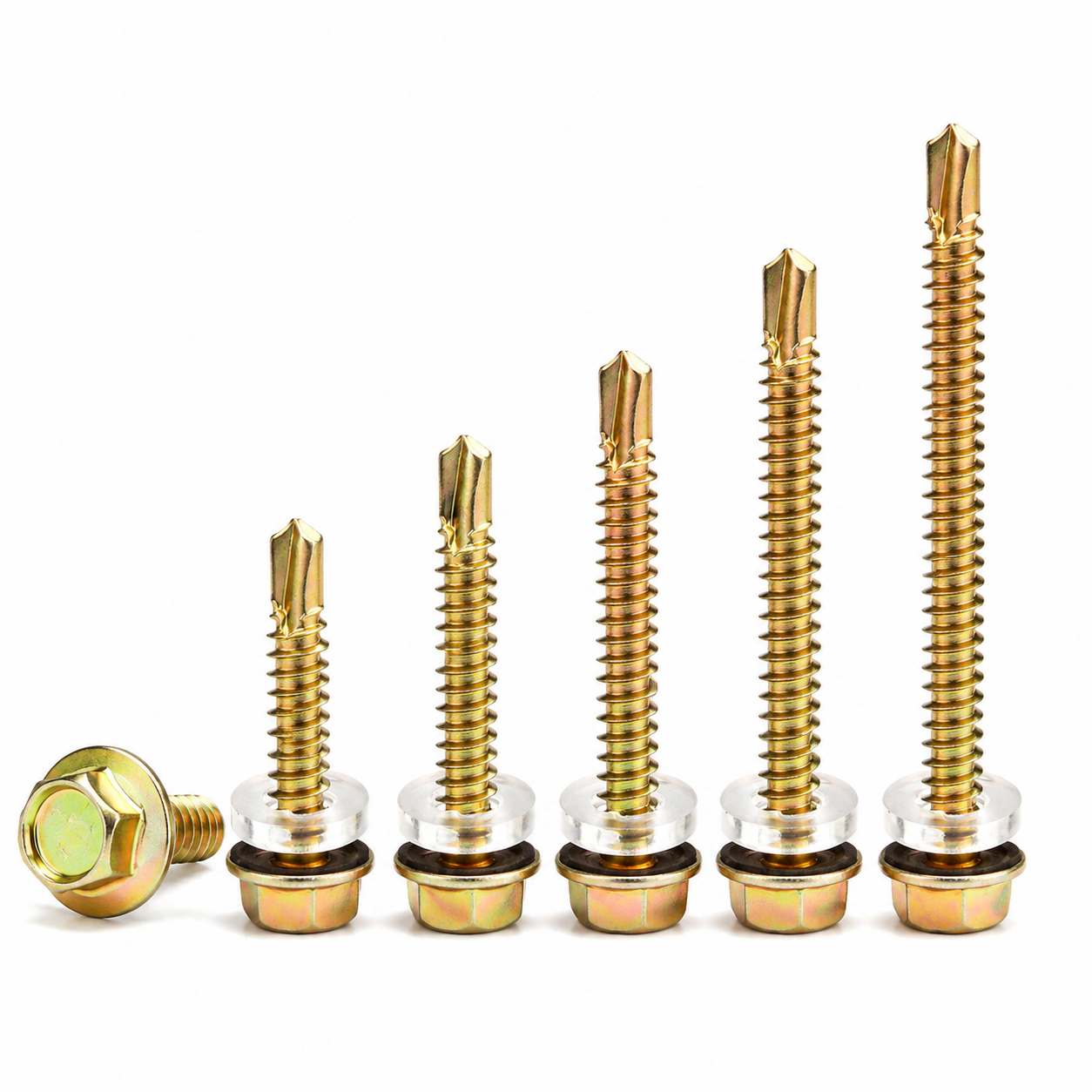

DIN7504 Hex Washer Head Self Drilling Screw

DIN7504 hex flange self drilling screw, drill point design without pre-drilling, with EPDM waterproof washer, specially for color steel tile and steel structure
Screw Self drilling screw DIN7504 screw Hex drill screw Roofing screw
1Product Attributes (General specification)
Product Name DIN7504 Hex Washer Head Self Drilling Screw
Standard DIN7504
Material Carbon Steel
Surface Treatment Zinc Plated / Yellow Zinc Plated
Structure Hex flange head, drill point, EPDM waterproof washer
Origin Hebei · Handan · Yongnian — Integrated Manufacturer & Exporter
MOQ 100 Pcs (negotiable for trial orders)
2Performance Parameter (Reference data)
Feature Self-drilling tip, no pre-drilling required, integrated waterproof gasket, good sealing, fast installation
Working Temperature -40 ℃ ~ +120 ℃
Corrosion Resistance Zinc coating provides rust protection, suitable for outdoor roofing projects
Hardness Drill point hardened for efficient drilling
Tolerance Precision thread, stable drilling performance
3Optional Types

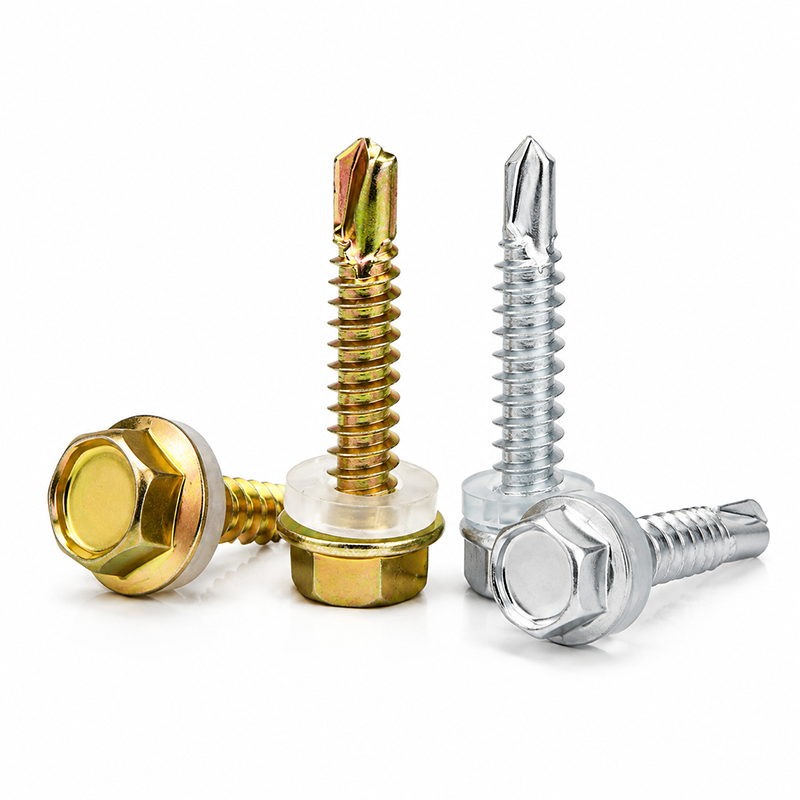

Yellow Zinc Plated Drill Screw Bright yellow finish, widely used for color steel tile roofing
White Zinc Plated Drill Screw Silver zinc surface, good rust resistance for steel structure connection
Stainless Steel Drill Screw 304 material, strong anti-corrosion for coastal high salt environment
4Size Table (Common models)
Common specifications of DIN7504 hex washer head self drilling screw, custom size available upon request.
Model Drill Size Head Across Flats(mm) Length(mm)
ST4.8 #2 8 19
ST4.8 #2 8 25
ST5.5 #3 10 25
ST5.5 #3 10 32
ST6.3 #4 12 38
5Applications & Packaging (Trade info)
Applications Color steel tile roof, photovoltaic bracket, light steel structure, workshop enclosure, metal sheet connection
Packaging Woven bag or carton, waterproof stretch film wrapped, pallet packing available
Documents PI, Packing List, Certificate of Origin, Material Test Report
Payment Terms 30% T/T in advance, balance before shipment
Lead Time 3–7 days for regular stock, 7–12 days for customized specifications
6Related Tags
self drilling screw DIN7504 screw roofing screw hex drill screw color steel screw metal sheet screw

Request a Quote

Please tell us the size and quantity you need. We supply DIN7504 hex washer head self drilling screws for color steel roof and photovoltaic steel structure fastening.
