Internally Threaded Drop-In Anchors

Internally threaded drop-in anchors for compatible bolts and threaded rods. Send thread size, substrate details and quantity to Kangnaigu for a quote.


 Category:  Expansion Bolt

 Email:  info@kangnaigu.net



Product Details
Standard No.: Drop In Anchor

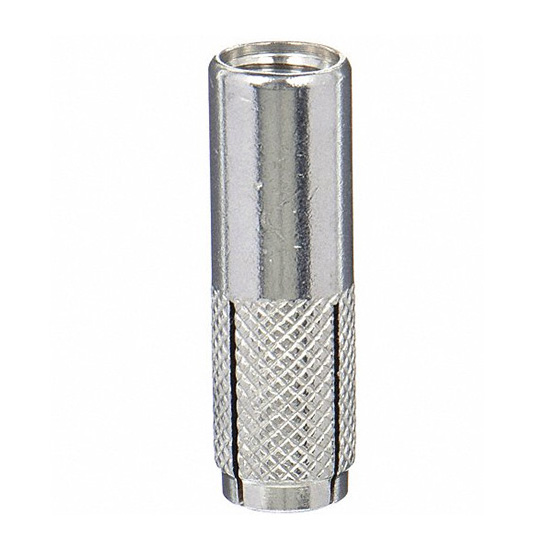

Zinc Plated Carbon Steel Drop In Expansion Anchor

Internal expansion drop in anchor, knurled body design, widely used for concrete base fixing
Drop in anchor Expansion anchor Concrete anchor Internal anchor Wall fastener
1Product Attributes (General specification)
Product Name Zinc Plated Carbon Steel Drop In Expansion Anchor
Standard General Drop In Anchor
Material Carbon Steel
Surface Treatment Zinc Plated
Structure Knurled cylindrical body, internal expansion split design
Origin Hebei · Handan · Yongnian — Integrated Manufacturer & Exporter
MOQ 100 Pcs (negotiable for trial orders)
2Performance Parameter (Reference data)
Feature Knurled surface increases friction, reliable locking force in solid concrete
Working Temperature -40 ℃ ~ +120 ℃
Corrosion Resistance Zinc plating provides basic rust protection
Hardness Suitable tensile strength for static load installation
Tolerance Precise thread and outer diameter, easy installation
3Optional Types
Ordinary Zinc Plated Type Standard economical type for indoor concrete fixing
Hot Dip Galvanized Type High corrosion resistance, suitable for outdoor engineering
Stainless Steel Type 304 stainless steel, excellent anti-corrosion for humid environment
4Size Table (Common models)
Common specifications of drop in anchor, custom size available upon request.
Model Drill Bit Diameter(mm) Anchor Length(mm) Matching Bolt Size
M6 8 25 M6 bolt
M8 10 30 M8 bolt
M10 12 40 M10 bolt
M12 16 50 M12 bolt
5Applications & Packaging (Trade info)
Applications Curtain wall, pipeline support, electrical equipment, mechanical base, building decoration
Packaging Woven bag or carton, waterproof stretch film wrapped, pallet packing available
Documents PI, Packing List, Certificate of Origin, Material Test Report
Payment Terms 30% T/T in advance, balance before shipment
Lead Time 3-7 days for regular stock, 7-12 days for customized specifications
6Related Tags
drop in anchor concrete expansion anchor internal expansion anchor zinc plated anchor masonry fastener

Request a Quote

Please tell us the size and quantity you need. We supply carbon steel drop in expansion anchors for concrete mounting and construction fastening.
