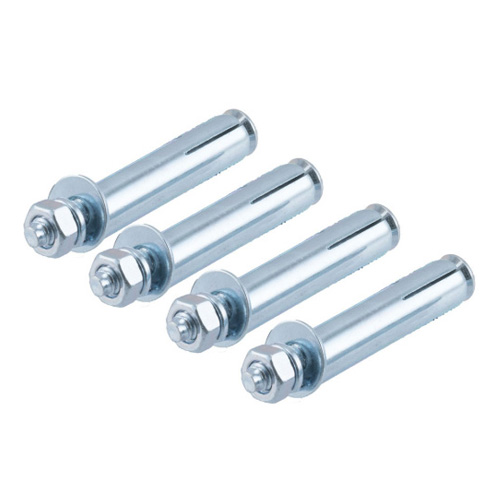

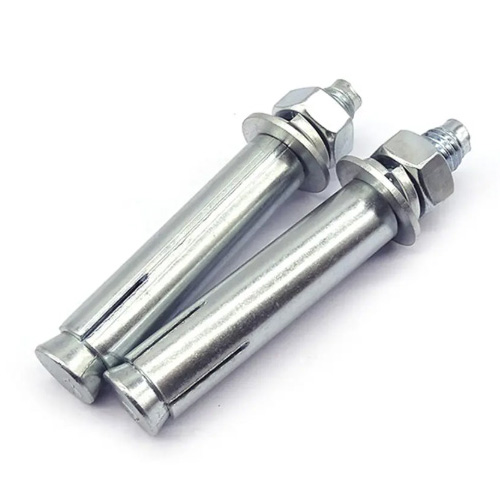

Sleeve Anchors with Hex Nuts and Washers

Sleeve anchors with hex nuts and washers for compatible base materials. Send anchor size, fixture thickness and quantity to Kangnaigu for a quote.


 Category:  Expansion Bolt

 Email:  info@kangnaigu.net



Product Details
Standard No.: Sleeve Expansion Anchor

Color Zinc Plated Sleeve Type Expansion Anchor Bolt

Sleeve expansion anchor, widely used for general concrete fixing
Sleeve expansion anchor Expansion bolt Concrete sleeve anchor Color zinc anchor Wall expansion fastener
1Product Attributes (General specification)
Product Name Color Zinc Plated Sleeve Type Expansion Anchor Bolt
Standard General Sleeve Expansion Anchor
Material Carbon Steel
Surface Treatment Color Zinc Plated

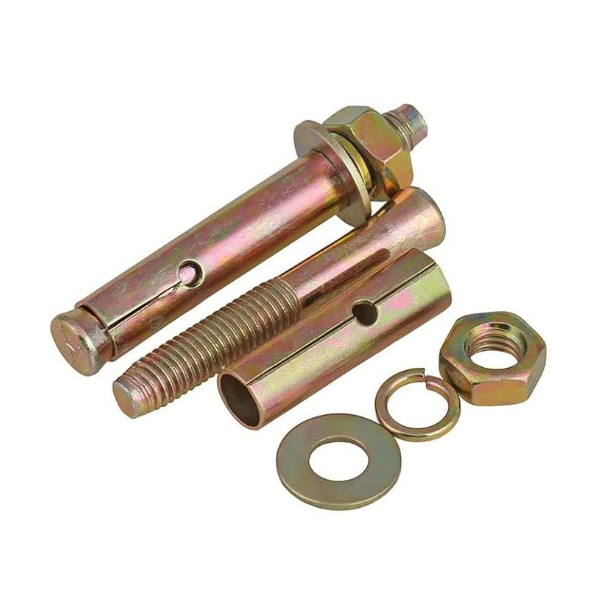

Structure Slotted expansion sleeve, threaded stud, hex nut, flat washer
Origin Hebei · Handan · Yongnian — Integrated Manufacturer & Exporter
MOQ 100 Pcs (negotiable for trial orders)
2Performance Parameter (Reference data)
Feature Tightening nut pushes sleeve to expand, stable grip in concrete, easy installation
Working Temperature -20 ℃ ~ +120 ℃
Corrosion Resistance Color zinc plating provides good anti-rust ability
Hardness Suitable tensile strength for conventional static load
Tolerance Precise thread, uniform expansion sleeve
3Optional Types
Color Zinc Plated Type Common type for indoor general projects
Hot Dip Galvanized Type High corrosion resistance for outdoor application
304 Stainless Steel Type Anti-corrosion for humid and coastal areas

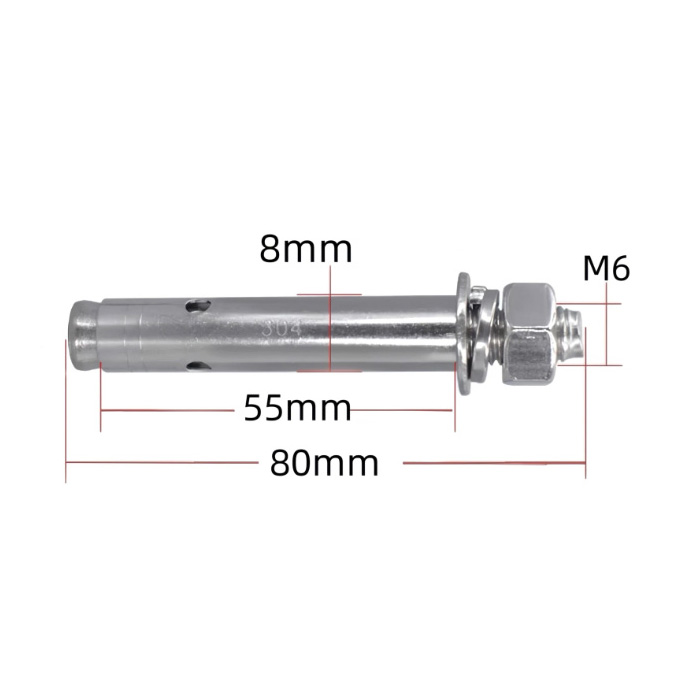

4Size Table (Common models)
Common specifications of sleeve expansion anchor bolt, custom size available upon request.
Model Drill Bit Diameter(mm) Anchor Length(mm) Thread Size
M6 8 60 M6
M8 10 80 M8
M10 12 100 M10
M12 14 120 M12
5Applications & Packaging (Trade info)
Applications Guardrail, bracket, air conditioner, pipeline, billboard, interior fixing
Packaging Woven bag or carton, waterproof stretch film wrapped, pallet packing available
Documents PI, Packing List, Certificate of Origin, Material Test Report
Payment Terms 30% T/T in advance, balance before shipment
Lead Time 3-7 days for regular stock, 7-12 days for customized specifications
6Related Tags
sleeve expansion anchor color zinc expansion bolt concrete sleeve fastener wall expansion anchor carbon steel expansion bolt

Request a Quote

Please tell us the size and quantity you need. We supply color zinc plated sleeve expansion anchors for general concrete mounting.
